TABLE OF CONTENTS
- Preamble
- Type of sync
- Which data is sent to the other system?
- Steps to synchronise data
- Step 3: Perform the sync export
Preamble
Timetabling data that exists in Timetable files are usually sent on to one or more other non-Tes systems, such as student learning management systems, reporting systems, administration systems, and many more. The Tes integration team works with other systems to make sure that the data required to be sent is in the correct format.
This document can be referenced for:
- new school file set up
- synchronisation processes
- synchronisation troubleshooting
While Tes takes all care to ensure any mention to the other system is correct and up to date, it is the user's responsibility to check with the other system prior to an initial sync. If the user becomes aware of any changes to the other system, we would very much appreciate this feedback.
Type of sync
This sync is performed by exporting a TXT files that has been correctly formatted, ready uploading into LanSchool.
The LanSchool export function will export each single class into spreadsheet when the option for a year level is selected from the dropdown.
- ClassByTeacherADName.TXT
- StudentsForClassByADName.TXT
Which data is sent to the other system?
This table lists many of the data and features found in Tes and, where known by Tes specialists, whether they are also understood by the other system.
Note that Tes builds many excellent features to help users build high quality timetables, and while these features can be sent onto the other system through the synchronisation process, not all systems have built the capability on their end to receive/display these features.
| Tes feature | Notes on feature | Is this feature received by the other system? | Other Notes |
| Bell times | No | ||
| Classes | Classes as per Class data screens | Yes | |
| Class lists | Yes | ||
Composite (linked) classes | One teacher teaching more than one class at the same time | Yes | |
| Duty roster | Yes | ||
| Faculty data | No | ||
| Grid structure codes | No | ||
| Multi-grid | More than one bell times structures set up | Unsure | Check with LanSchool team. |
Multi-file | Two or more .etz timetable files | No | |
| On-call roster | Yes | ||
| Priority classes | The chosen class on a student's timetable where they have class clashes. | Yes | |
| Room data | Room Code, Name, Size, Campus, Comment | No | . |
| Rotation classes | Classes from particular rotations | Yes | All rotation classes are exported. |
| RTO roster | No | ||
| Student data | Class code, Student full name | Yes | |
| Study roster | Study classes, staffing and rooming roster | Yes | |
| Sub-classes | Yes | ||
| Teacher data | Teacher full name | Yes | |
| Teacher days off (Unavailables) | No | ||
| Timetable data | No | ||
| Two (or more) rooms at once | No | ||
| Two (or more) teachers at once | A class with two or more teachers at the same time | No | |
| Year levels (non-numeric) | Year levels such as SPT, LSUP, ROLL etc | Yes |
Yes - The data is sent from our end and is being received and processed by 3rd party system.
No - The data is not supported by 3rd party systems and is not sent from Tes.
Unsure - The data is being sent from Tes but we are unsure if it is being processed and supported by LanSchool.
Steps to synchronise data
Step 1: Check if any LanSchool set up is required
Many systems require some set up prior to receiving timetable data from Tes. Check with LanSchool.
Step 2: Configure the Tes Timetable file

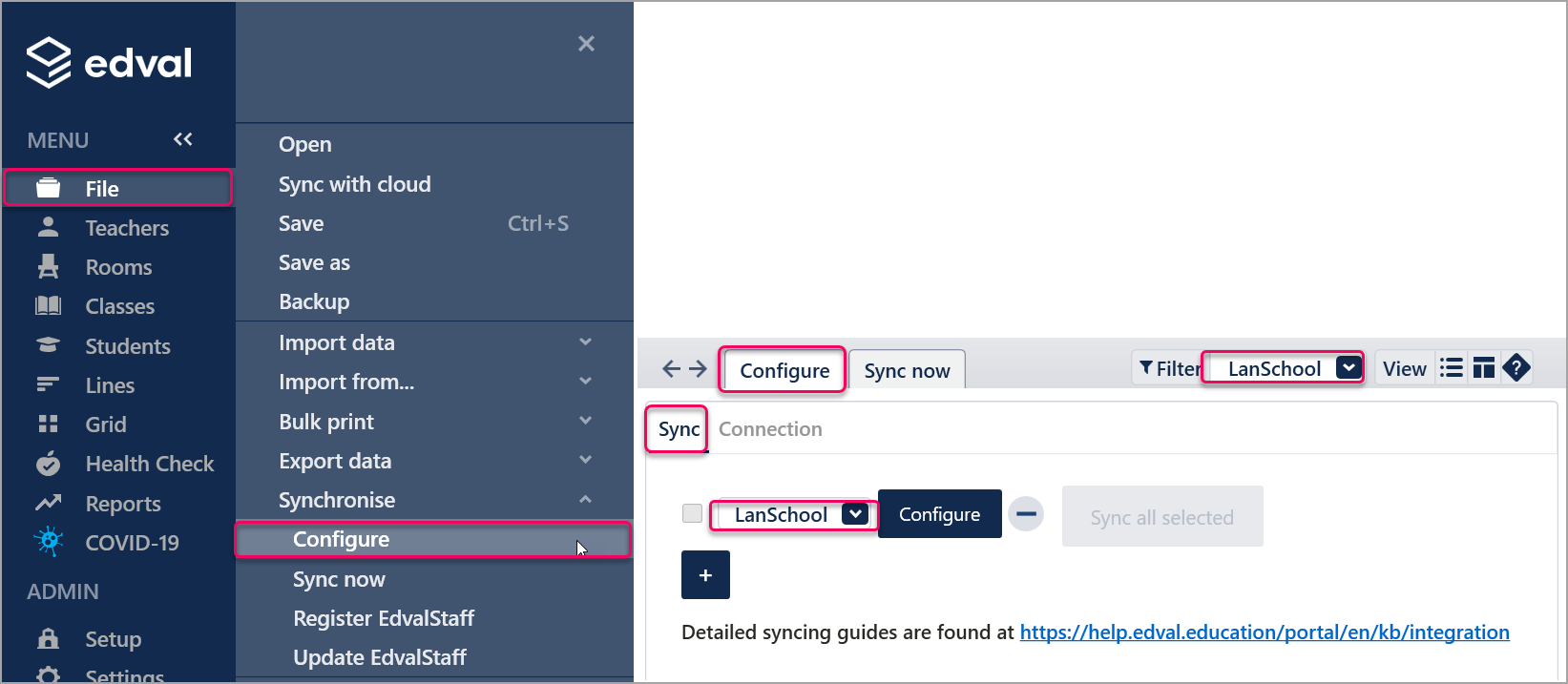

- Open the relevant Timetable file, and go to File > Synchronise > Configure > Sync tab
- Select the + button and choose 'LanSchool' from the drop down menu.
Multiple systems can be set up to sync. It is common to have both the Edval webserver, the schools learning management system configured, along with any other systems the school wishes to regularly sync to.

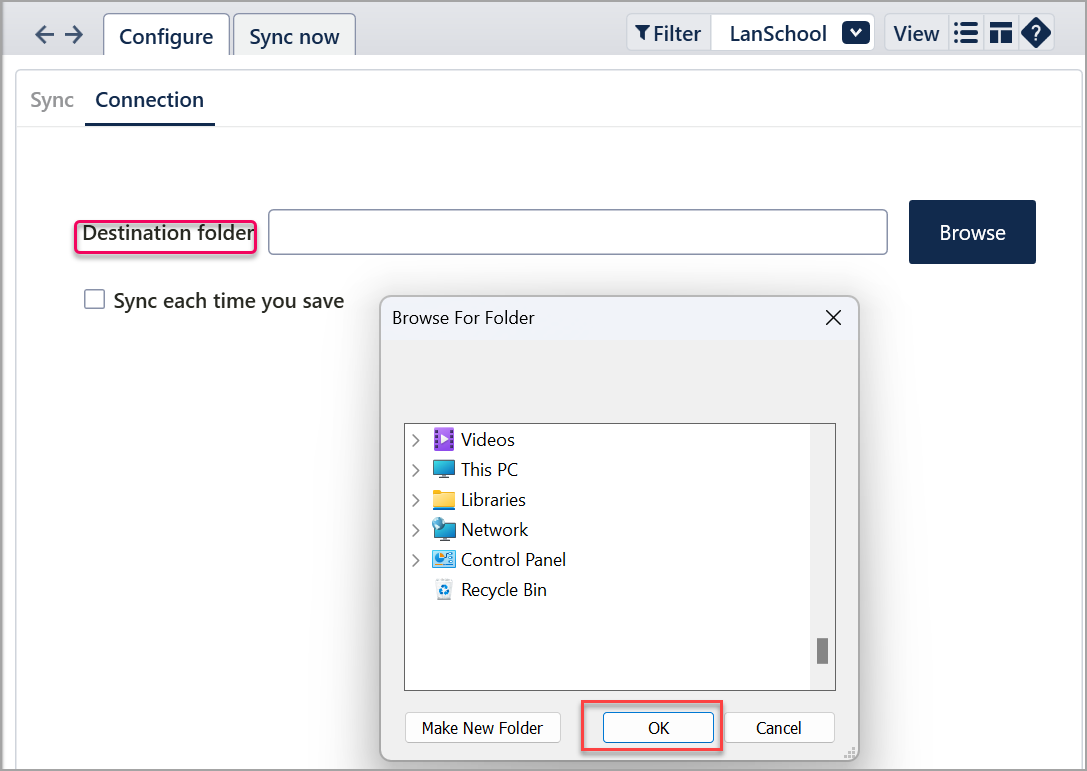

- Select the Configure button, which will move you to the Connection tab. A destination folder must be selected to direct where the TXT files will be saved. Select Browse and locate or create the desired location.
Select Connection.
Enter the name of the folder where the export TXT is to be stored.
Step 3: Perform the sync export
- Go to File > Synchronisation > Sync now.
- Ensure ‘LanSchool’ is selected from the dropdown in the top-right corner.

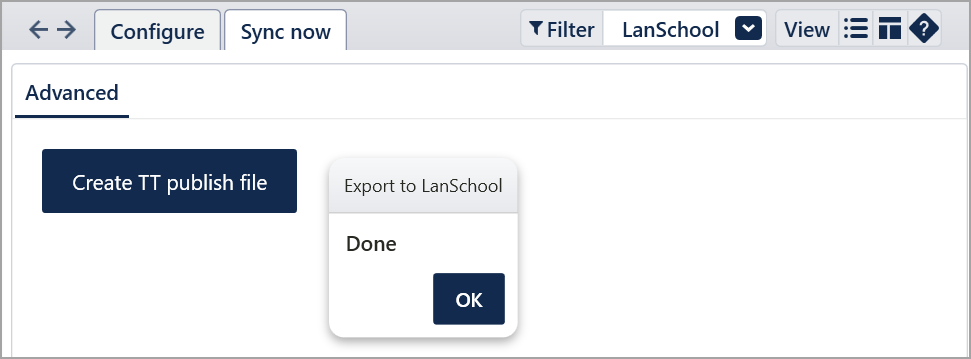

- Select Create TT publish file
- Select OK

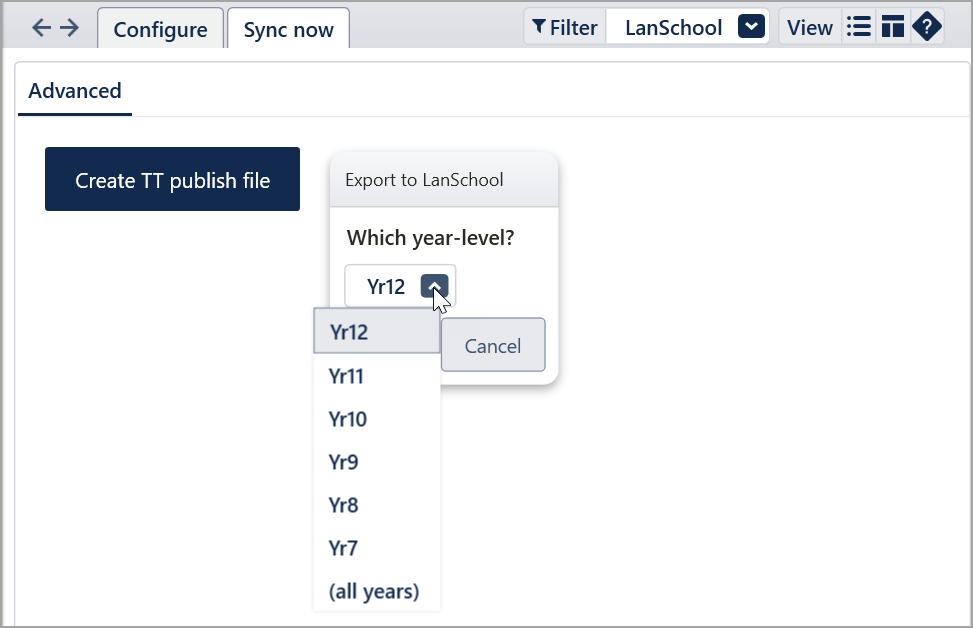

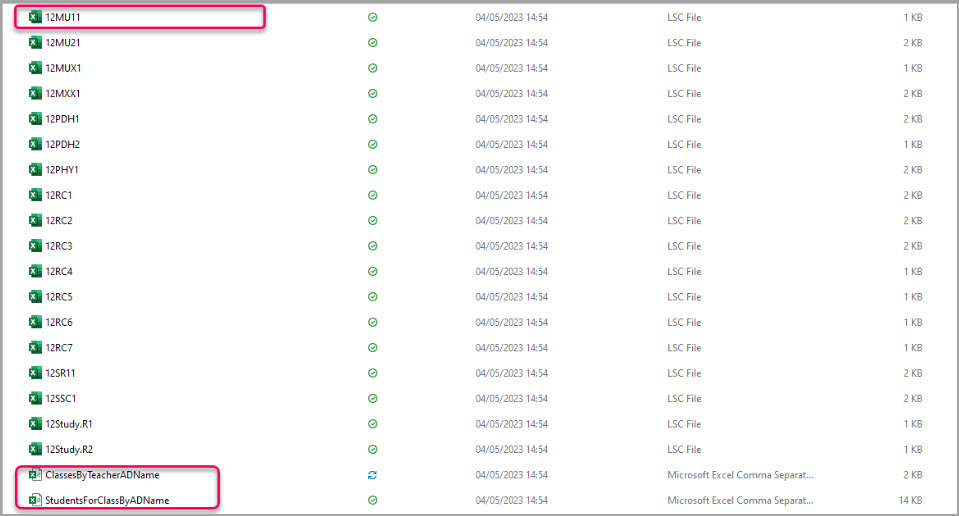

According to the example above, if the school decides to export Yr12, the Yr12 will be exported depending on how many classes are in Yr12. E.g. 12AHI1 would hold the class list for that particular class.
Each year level will also consist of two more separate TXT files which are exported within Yr12 export. 'All year' can also be selected to be exported.

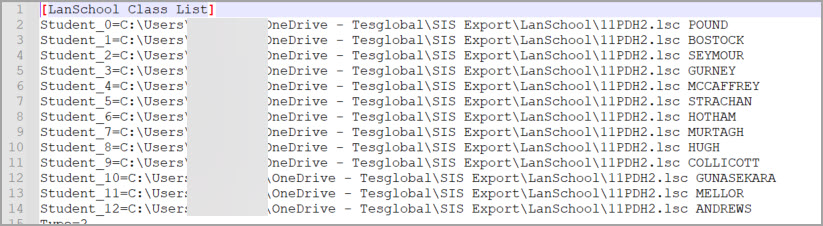

The below screenshot show how each individual TXT will look like when exported
Note: The below table only explains what type of data the ClassByTeacherADName.TXT and StudentsForClassByADName TXT file contains when exported:
File Name | Data column (A) | Data column (B) | Data column (C) |
ClassByTeacherADName.TXT | Teacher Full Name | Course Code | Subject Name |
| StudentsForClassByADName.TXT | Course Code | Student Full Name | N/A |
Step 4: Upload/Import the TXT files into LanSchool
Please refer to LanSchool documentation for instructions on how to upload/import the TXT files.
